Trane ComfortLink II Controls in Santa Clarita

What does ComfortLink II actually do?

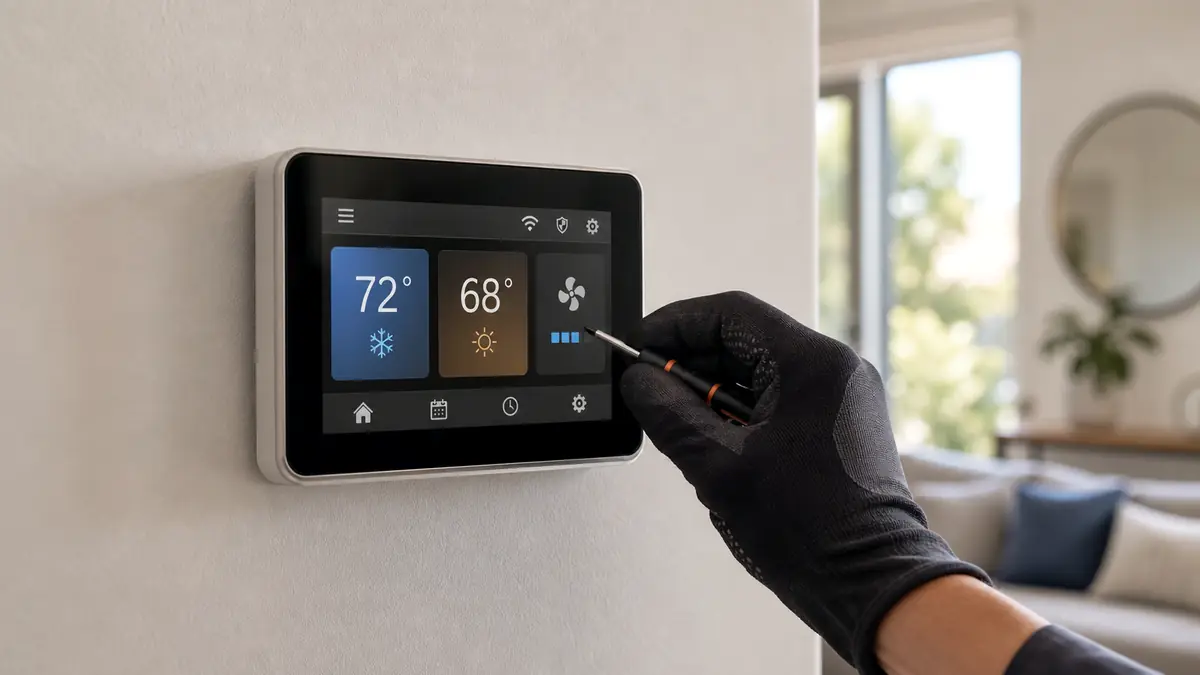

It is the communicating brain of a Trane variable-speed system. The XL850 and XL824 color touchscreens talk to the indoor and outdoor boards over a 4-wire bus, which is what lets an XV20i or XV18 modulate its Climatuff compressor through dozens of stages instead of just on and off. The XL850 adds a built-in Nexia bridge with Z-Wave for home automation. Crucially for diagnosis, these controls translate faults into plain English, such as loss of communication with the outdoor unit, rather than leaving you counting LED blinks.

Which ComfortLink II control goes with which system?

The XL850 (TCONT850) is the top thermostat, a color touchscreen with a built-in Nexia bridge and Z-Wave, so it doubles as a home-automation hub on top of driving variable-speed staging. The XL824 (TCONT824) is the same communicating brain, color touchscreen and Wi-Fi with Nexia, without the built-in Z-Wave hub, and it is the value pick when you do not need the automation. Both are required to unlock the staging on an XV20i or XV18; without one, a variable-speed unit cannot modulate. Below the communicating tier sit non-communicating stats: the XL624 programmable, and the XR724 and XR402 Wi-Fi and programmable controls, which run a single-stage XR or a two-stage XL in conventional 24-volt mode. The dividing line is simple: if the system is variable-speed, it needs an XL850 or XL824; if it is single- or two-stage relay, a conventional thermostat is correct and cheaper.

What faults does ComfortLink II report?

The advantage of these controls is that they translate a fault into plain English on the touchscreen and into the Trane Home app, instead of leaving you counting LED blinks at the furnace. Here is what the common alerts point to and where we look first.

Why do communicating systems lose communication here?

The 4-wire bus is sensitive. In Santa Clarita the common culprits are rodent-chewed or sun-degraded comm wire at the outdoor unit, water intrusion into an outdoor board, and low line voltage during heat-wave demand. A single weak connection drops the whole conversation, and the system either runs single-speed or shuts down. We read the bus voltage at the thermostat, indoor board, and condenser to locate the break instead of replacing boards on guesswork. This is the same fault we chase on heat pump repair and short-cycling calls.

Is the thermostat or the board failing?

We separate the two. A blank or frozen XL850 can be a dead screen, but more often it is a power or bus problem upstream. We confirm the 24-volt supply, check the indoor control board, and verify the outdoor board is answering. Only when the supply and bus are clean and the screen still will not run do we condemn the thermostat. That order keeps you from paying for an 800-dollar communicating board that was never the problem.

What does a ComfortLink II retrofit involve in a Santa Clarita home?

Most of the valley's 1990s-2000s tract homes were wired for a conventional 24-volt thermostat, so moving to ComfortLink II is rarely a simple swap unless the outdoor system is already communicating. The control needs a 4-wire communicating connection between the XL850 or XL824, the indoor board, and the outdoor unit, and that bus has to be clean and continuous. In practice the retrofit makes sense when you install an XV18 or XV20i, where the control comes as part of the system. Dropping an XL850 onto an old single-stage XR buys you a nicer screen and the Trane Home app but no staging benefit, so we will tell you when it is not worth the cost. Wiring runs through the same attic that bakes toward 140 F in summer, so on any retrofit we inspect the existing thermostat wire for heat and rodent damage, since a marginal conductor that worked for a simple stat can fail on the more demanding comm bus.

ComfortLink II versus a smart thermostat: which is right?

It depends entirely on the equipment, not on which screen looks nicer. On a variable-speed XV system, ComfortLink II is not optional and a third-party smart thermostat is the wrong choice: a Nest or Ecobee cannot speak the communicating protocol, so it would force the XV20i to run single-speed at best or refuse to run at all, throwing away the modulation you paid a premium for. On a single-stage XR or a two-stage XL wired conventionally, a quality smart thermostat is perfectly fine and cheaper, and you keep scheduling and remote control without the communicating board cost. The tradeoff is real: ComfortLink II gives you staging control and plain-language diagnostics but locks you into the Trane ecosystem; a smart stat gives you flexibility but only on systems that do not need communicating control.

Do I need ComfortLink II on my system?

Only if you have or want a variable-speed Trane. If you run an XL two-stage in two-stage mode or a single-stage XR, a quality programmable thermostat is plenty and cheaper. If you are installing an XV20i or XV18, the communicating control is part of the system, not an upsell. Our AC installation page covers when to include it.
