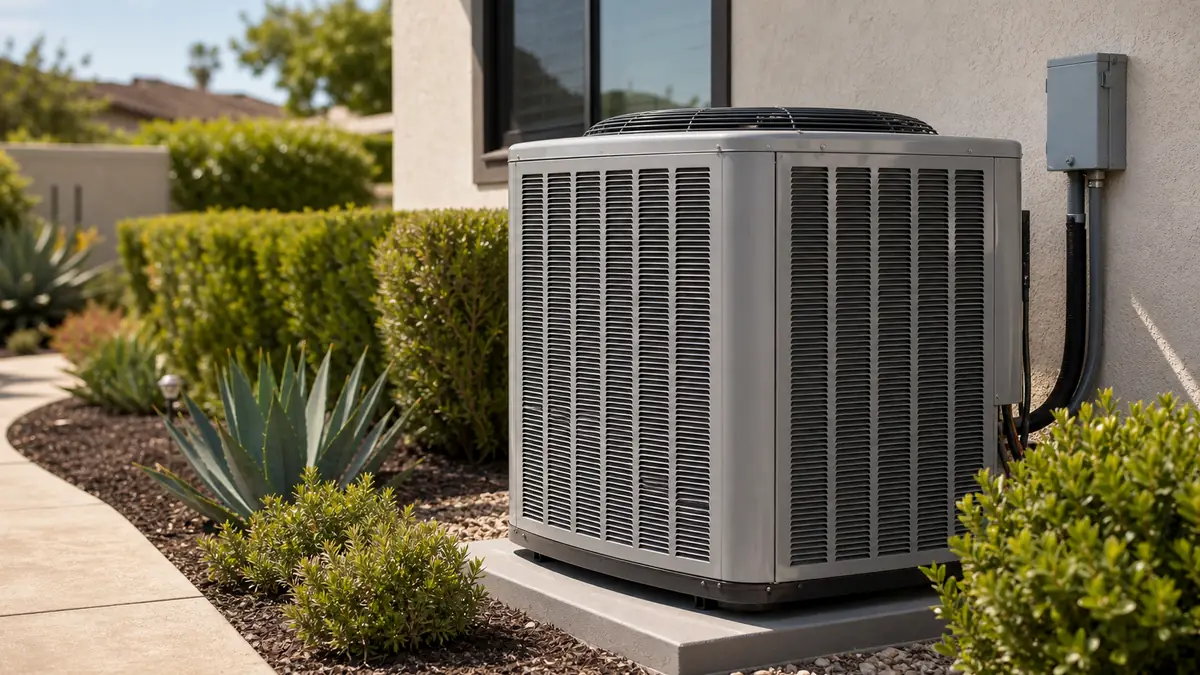

Trane XV20i Variable-Speed Systems in Santa Clarita

What makes the XV20i different in this valley?

The XV20i is Trane's top residential tier, built around a Climatuff variable-speed compressor that modulates across a wide range instead of cycling on and off. In Santa Clarita's long, hot summers that means it idles quietly through mild afternoons and ramps up for the 100 F-plus Santa Ana days, holding tight temperatures and pulling humidity steadily. The all-aluminum Spine Fin coil resists corrosion and has fewer leak points than copper-aluminum fin-tube designs. At up to roughly 20.5 SEER2 it was a Most Efficient of ENERGY STAR product, and the heavy valley run hours are exactly where that efficiency pays back.

What are the XV20i model numbers and specs?

The heat-pump XV20i is the 4TWV0 series, sized 2 to 5 tons: 4TWV0X24A1000A (2 ton), 4TWV0X36A1000A (3 ton), 4TWV0X48A1000A (4 ton), and 4TWV0X60A1000A (5 ton). The air-conditioner versions are the 4TTV0 and 5TTV0 series. Every one pairs a Climatuff variable-speed inverter compressor with the all-aluminum Spine Fin outdoor coil and reaches up to roughly 20.5 SEER2, which earned it a Most Efficient of ENERGY STAR designation. The defining behavior is modulation: instead of cycling full-on and full-off, the inverter ramps the compressor across a wide range to match the load, which is why it holds tight temperatures and pulls humidity steadily. Two things are non-negotiable on this system. It requires a ComfortLink II XL850 or XL824 communicating thermostat to run variable-speed, and the indoor coil must be the matched evaporator, because a mismatch throws away the rated SEER2. The XV18 (4TWV8) sits just below it for homes that want variable-speed comfort without the top-tier premium.

How does the XV20i report faults, and what do they cost?

Because the XV20i is a communicating system, its faults surface as plain-language alerts on the ComfortLink II touchscreen and in the Trane Home app rather than as blink codes. The single most common one in this valley is the variable-speed unit dropping to single-speed: that is almost always the 4-wire comm bus or the inverter/communicating board, not a worn compressor, and it runs $400 to $2,000 to put right. A bare loss-of-communication alert often traces to a damaged comm wire or a line-voltage sag and lands lower, $200 to $900. The refrigerant lane, a leak at the Spine Fin coil or a flare and a recharge, is $225 to $1,500. The expensive condemn is the inverter Climatuff compressor at $1,200 to $3,500, which skews high on these inverter units, so we verify the comm bus and board first and never condemn the compressor on a guess. The diagnostic is about $89 to $200 and frequently credited.

Why would a variable-speed unit drop to single-speed?

Because the variable-speed behavior depends on the system talking to itself. The XV20i, its inverter/communicating board, and the ComfortLink II XL850 or XL824 share a 4-wire bus. If that bus is interrupted by a damaged comm wire, a water-intruded board, or a line-voltage sag during heat-wave demand, the system falls back to a safe single-speed mode or stops. We meter the bus and the inverter board before condemning the compressor, which is rarely the actual fault. See our ComfortLink II page and heat pump repair.

What does an XV20i install need in a Santa Clarita home?

More attention to the system around it than a basic changeout does, because a variable-speed unit only delivers its efficiency if it can breathe and communicate. We start with a Manual J load so the XV20i is sized to the home, not to the oversized 5-ton nameplate that builders often left behind, since an oversized variable-speed unit cannot stay in its efficient low-modulation range. The ducts matter more here too: high static pressure from leaky attic runs or undersized returns forces the ECM blower to work against itself and undercuts the rated airflow the SEER2 number depends on, so we check static and recommend duct sealing or return correction where the valley's two-story tracts need it. The communicating control is part of the install, an XL850 or XL824 on a clean 4-wire bus. Finally we run the Title-24 refrigerant-charge and airflow verification and pull the Los Angeles County permit. Done right, the heavy valley run hours are exactly where the XV20i pays back.

XV20i versus XL18i: is the variable-speed premium worth it?

The XV20i's edge over the two-stage XL18i is real but conditional. The XV20i modulates across a wide range and tops out near 20.5 SEER2, so on a heavy-load, west-facing Tesoro del Valle or Valencia Summit home that runs the AC for long hours, the efficiency and the steadier, quieter comfort earn back the higher installed cost. On a moderate, well-shaded home that does not run as many hours, the XL18i captures most of the comfort benefit at a lower price, and the variable-speed payback stretches out. The other side of the tradeoff is complexity: the XV20i depends on the communicating bus, the inverter board, and a matched coil, so it has more parts that can interrupt modulation, while the XL18i can fall back to simple two-stage operation. We do not push the top tier on a home that will not use it, and we lay both against your real run hours and the installed numbers on the AC installation page.

Is an XV20i the right install for my home?

It is the strongest fit for heavy-load homes: west-facing Tesoro del Valle and Valencia Summit houses with lots of afternoon glass and long run hours. For a smaller Newhall or Saugus home a two-stage XL18i or even a single-stage XR may be the better value, since the variable-speed premium only pays back where the unit runs many hours. We size with Manual J on our sizing guide and lay out the tiers on the AC installation page.
