Trane AC Installation in Santa Clarita

Why is Santa Clarita such an AC-installation market?

Because the valley is a wall of production homes that all aged together. Valencia Summit went up around 1985-1990, the Northbridge tracts through the 1990s, and Tesoro del Valle in the 2000s. Those builder-grade condensers were typically the cheapest qualifying unit at the time, and they are now hitting 20 to 35 years in a microclimate that bakes them 55 to 75 days a year over 90 F. When one finally seizes, a repair on a discontinued-refrigerant unit rarely makes sense, so the right move is a properly sized replacement. We match Trane's lineup to your home rather than to the old nameplate.

How does a Santa Clarita AC install actually go?

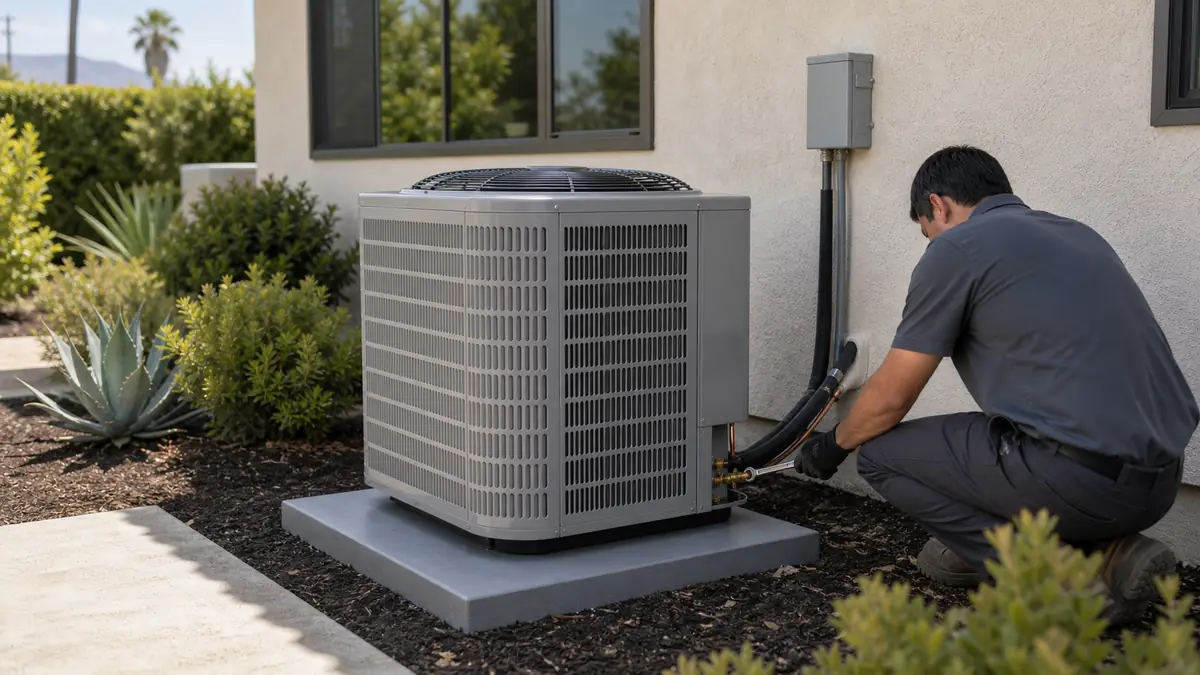

Plan on one to two days for a Valencia or Saugus changeout, worked through the same ordered stages each time. It opens with an in-home load and condition assessment: Manual J inputs, duct and return inspection, electrical panel and disconnect check, and pad and clearance review. On install day the crew recovers the old refrigerant to EPA standards, pulls the dead condenser, and sets the new Trane unit on a level pad with proper service clearance. Inside, we swap or match the evaporator coil to the condenser, because a mismatched coil tanks the rated SEER2 and voids the efficiency you paid for. Next comes the line set: we either flush the existing copper or run new, braze under flowing nitrogen to keep the inside of the lines clean, then pull a deep vacuum below 500 microns and hold it to prove the system is leak-free and dry. We weigh in the factory charge, wire the contactor and dual-run capacitor, set the ComfortLink II thermostat on a communicating XV system, and commission: superheat and subcooling to the Trane charging chart, static pressure across the coil, and temperature split at the registers. The instruments that matter here are the micron gauge, the digital manifold, and the anemometer or static-pressure kit; the Title-24 charge and airflow verification leans on those same readings.

Which Trane line fits which Santa Clarita home?

The XR-series single-stage units (4TTR family: XR13, XR14, XR16, XR17, plus the XR16 Low Profile for tight side yards) are the value workhorses: full-output or off, durable, widely stocked, and the right pick for a smaller Newhall or Saugus home or a budget changeout. The XL18i two-stage Climatuff runs a quiet low stage most of the season and steps to high stage only for Santa Ana spikes, which suits a two-story Valencia tract that wants steadier upstairs temperatures. The variable-speed tiers, XV18 (4TTV8/5TTV8) and the flagship XV20i (4TTV0/5TTV0) at up to 20.5 SEER2, modulate across a wide range and pay back fastest in homes with long run hours and heavy west glass. All Trane AC outdoor units use the all-aluminum Spine Fin coil, which resists corrosion and has fewer leak points than copper-aluminum fin-tube coils, a real advantage given how hard these units run here. The variable-speed lines require a ComfortLink II XL850 or XL824 to unlock their staging; the XR runs fine on a standard programmable thermostat.

What does an AC install cost in Santa Clarita, and why?

A central AC replacement here typically runs $5,000 to $12,000, with a heavy-load XV20i job reaching $14,000. The condenser-and-coil hardware is the biggest line, and it swings with tier: an XR value unit anchors the low end, the XV20i the high. After that, the cost drivers are the sub-jobs. A coil-only swap or line-set replacement adds $900 to $2,300. Upsizing the electrical disconnect or whip, or correcting an undersized return, adds labor. If the ducts leak badly enough to choke airflow, sealing them is part of hitting the rated performance and the Title-24 airflow number. The Los Angeles County permit, the refrigerant-charge and airflow verification, and the HERS duct test (where ducts are altered) all fold into the quote. A communicating ComfortLink II thermostat on an XV system is part of the system, not an add-on. We itemize these so you see exactly where the dollars go rather than a single lump figure.

How do you size the new system?

Off a Manual J load calculation, not the tonnage already bolted on. We measure conditioned square footage, west and south glass area, ceiling height, attic insulation, and duct condition. Across Santa Clarita's two-story tract homes that math typically pulls an oversized 5-ton install back to a 3.5 or 4-ton system that runs longer, dehumidifies better, and quits short-cycling. Oversizing is the mistake we correct most often around here. Our Manual J sizing guide walks through the inputs.

What gets verified for Title-24 compliance?

Two items on nearly every Climate Zone 9 changeout: refrigerant-charge verification and airflow verification on the new split system, and, wherever the duct work is altered, HERS field verification of duct leakage. The 2022 Energy Code (carried through the 2025 cycle) ties those to CEC reference weather stations rather than city limits, so we confirm by address. We file the Los Angeles County permit and bring in a HERS rater so the job passes and your records stay clean for resale.

Should I add a communicating thermostat?

If you install an XV18 or XV20i, yes, it is required to unlock variable-speed staging. The ComfortLink II XL850 or XL824 touchscreen drives the modulation and shows plain-language faults instead of a blinking outdoor board. On a single-stage XR you can run a standard programmable stat and save the cost. Details on our ComfortLink II controls page and the XV20i page.

What if my unit is still under Trane warranty?

Then a failed compressor or coil may be a covered part, and that claim runs through a Trane-authorized dealer. We will say so up front rather than sell you a full install you do not need yet. Valley homeowners reach us for the replacement that has aged past its warranty, the sanity-check on a quote that sized the box too big, or an all-brands changeout. See our independence note on the about page, and if you are weighing the call, the repair-or-replace guide helps.
